Part One moved frames and Part Two moved packets and segments. This part is the top of the stack, where applications talk, then the two services every network depends on (DNS and DHCP), a packet’s whole journey, and a set of short answers and commands.

5. The upper layers

TCP/IP treats everything above transport as one application layer. OSI splits it into three: session, presentation and application.

Session layer

What it is

  • The 5th layer of the OSI model.
  • It manages communication sessions: it sets up and maintains connections between end-user applications, handles data for the presentation layer, and uses the transport layer underneath.
  • It takes streams of data, marks them, and resynchronises them, so a message is not cut off at the start and no data is lost.
  • Setting up a session involves mapping addresses, choosing transport-quality parameters (packet loss, bit rate, delay, jitter, throughput, availability and so on), negotiating session parameters, sending limited user data, and monitoring the transfer.
  • It is what makes it possible to send large files reliably.

Functions

  • Dialog control: communication in half-duplex or full-duplex mode.
  • Token management: stops two sides from running a critical operation at the same time.
  • Synchronisation: adds checkpoints to data streams, so a session can be checkpointed and recovered.
  • Session management: opens, closes and manages sessions between application processes.
  • In practice these services are usually implemented through remote procedure calls (RPCs).
  • Synchronises information from different sources.
  • Connection control: manages one or several connections per application.
  • Checkpoint procedures: checkpoints for pausing, restarting and ending.
  • Fault tolerance: resumes a session from a checkpoint after a failure.
  • Data handling: takes data from the transport layer and passes it to the presentation layer.

Protocols

  • ADSP (AppleTalk Data Stream Protocol): self-configuring LAN connections, alongside AARP (AppleTalk Address Resolution Protocol) and NBP (Name Binding Protocol).
  • RTCP (Real-time Transport Control Protocol): out-of-band statistics and control for multimedia sessions, reporting on quality of service.
  • PPTP (Point-to-Point Tunneling Protocol): VPNs built from a TCP control channel and a GRE (Generic Routing Encapsulation) tunnel, for remote access.
  • PAP (Password Authentication Protocol): user validation in PPP, widely supported when a link is first set up.
  • RPC protocol: runs procedures in another address space, for client-server interaction.
  • SDP (Sockets Direct Protocol): socket streams over RDMA (Remote Direct Memory Access) fabrics, faster with no changes to applications.

Presentation layer

What it is

  • The 6th layer of the OSI model, also called the translation layer.
  • Data from the application layer is extracted and transformed here.
  • Also called the syntax layer, because it makes sure data has the right syntax for the layers it passes to.

Functions

  1. Translation: if sender and receiver use different encodings, such as ASCII and EBCDIC, it converts between them so the receiver can use the data.
  2. Encryption and decryption: data in transit must be protected from eavesdropping and tampering. Plaintext is encrypted into unreadable ciphertext before sending and decrypted at the receiver, which keeps it confidential and intact.
  3. Compression and decompression: large files are hard to send, so they are compressed for the trip and decompressed to their original size at the receiver.

Sub-layers

  1. CASE (Common Application Service Element): serves the application layer (7) and requests services from the session layer (5). It supports general application services such as RTSE (Reliable Transfer Service Element), ROSE (Remote Operation Service Element), ACSE (Association Control Service Element) and CCR (Commitment, Concurrency and Recovery).
  2. SASE (Specific Application Service Element): application-specific protocols such as MOTIS (Message Oriented Text Interchange Standard), RDA (Remote Database Access), FTAM (File Transfer, Access and Management), CMIP (Common Management Information Protocol), VT (Virtual Terminal), DTP (Distributed Transaction Processing) and JTM (Job Transfer and Manipulation).

Protocols

  • AFP (Apple Filing Protocol): Apple’s proprietary protocol for file services on Macs.
  • LPP (Lightweight Presentation Protocol): ISO presentation services over TCP/IP.
  • NCP (NetWare Core Protocol): file, print, directory, synchronisation, messaging and remote command services.
  • NDR (Network Data Representation): defines data types and their representation on the wire.
  • XDR (External Data Representation): a standard for describing and encoding data so it can move between different computer architectures.
  • SSL (Secure Sockets Layer): secures data between a browser and a server by encrypting the link, so everything passed between them stays private.

Application layer

What it is

The top layer of the OSI model. It gives users access to the network and talks directly to applications, such as web services. It requests what it needs from the presentation layer, and serves the application process.

Functions

  • Lets users reach and work with data over the network: forwarding, storing and retrieving email, and accessing remote files.
  • Lets software talk to other software and provides shared information and protocols for meaningful data exchange.
  • Acts as an abstraction layer, defining the shared protocols and interfaces.
  • Presents data to the user and works with the operating system to store it.
  • Its protocols depend on what information is being exchanged, and include host initialisation and remote login.

What application-layer protocols define

  • How the communicating parties set up the exchange.
  • Which message types the two hosts exchange.
  • The syntax of those messages.
  • How a message is sent and what response is expected.
  • How they interact with the layer below.

Application-layer protocols

1. Telnet

  • TELetype NETwork, for terminal emulation.
  • A Telnet client can use resources on a Telnet server, which is handy for managing files remotely and for the first setup of devices such as switches.
  • The telnet command uses the protocol to talk to remote systems.
  • Port 23. It sends everything, passwords included, in plain text, which is why SSH replaced it.
telnet [\\RemoteServer]
telnet 192.168.0.100

2. SSH (Secure Shell)

  • A protocol for secure remote access to devices.
  • Port 22 by default, over TCP.
  • Encrypts everything between client and server.
  • Supports password, public-key and certificate authentication.
  • Allows remote command execution, file transfer, and tunnelling of other protocols (X11, for example).
  • Strong protection against unauthorised access and eavesdropping.
  • Used for secure server administration and file transfer.
ssh username@hostname
ssh john@example.com
ssh john@192.168.0.100

3. FTP (File Transfer Protocol): how file transfer works

  • Transfers files between a local and a remote file system.
  • Uses two parallel TCP connections: the control connection on port 21 for commands, and the data connection on port 20 for the file itself (in active mode).
  • Preferred over protocols like HTTP for bulk file transfer for its clarity and focus, and for handling differences between systems.
  • Supports ASCII, EBCDIC and image (binary) file types.
  • A session starts with the client opening the control connection; a data connection is then set up for each transfer.
  • Client-server: the FTP client on the user’s machine opens the connections and moves the files.
  • Supports three data structures: file, record and page.
  • Runs over TCP, with the well-known port 21.
  • Advantages: speed, file sharing, efficiency. Disadvantages: file size limits, no support for multiple receivers, and no encryption.
  • Anonymous FTP lets anyone download public files from some sites without a username or password.
sequenceDiagram
    participant C as FTP client
    participant S as FTP server
    C->>S: control connection (port 21): USER, PASS
    C->>S: RETR report.pdf
    S->>C: data connection (port 20): the file
    Note over C,S: control connection stays open for more commands

4. TFTP (Trivial File Transfer Protocol)

  • A stripped-down, simplified FTP, for moving files between network devices when you know exactly what you want and where it is.
  • Port 69 (over UDP).

5. NFS (Network File System)

  • Lets remote hosts mount file systems over the network and use them as if they were local.
  • Centralises storage on servers, which gives administrators more control and efficiency.
  • Port 2049.

6. SNMP (Simple Network Management Protocol)

  • A management station collects data by polling network devices, which report specific information.
  • Devices share their current state, and administrators can change predefined values.
  • Ports 161 (queries to agents) and 162 (traps sent by agents), both normally over UDP.

7. HTTP and HTTPS (Hypertext Transfer Protocol, and HTTP Secure)

  • HTTP is how the World Wide Web delivers data.
  • Hypertext is text organised with links between documents.
  • Client-server, over TCP.
  • Stateless: the server keeps no memory of earlier requests.
  • HTTP uses port 80, HTTPS port 443.
HTTP HTTPS
Sent as plain text: anyone who intercepts it between browser and server can read it Encrypted, at the cost of some processing time: browser and server first exchange keys, using certificates, before any data moves
An application-layer protocol running directly on TCP The same HTTP, run inside a TLS session between HTTP and TCP
No encryption, so low security Encryption, so much better security
Faster Slightly slower
No protection for the data in transit Data is encrypted before it is sent and decrypted on the other side, with integrity checks
Transfers text, video and images on web pages Transfers data securely over the network

Over HTTP a login form sends username: username / password: password exactly as typed. Over HTTPS the same fields cross the network as ciphertext such as qhgVtu0873LqtlOhhGGD5h/41638bVghRFg, readable only by the server.

8. SMTP (Simple Mail Transfer Protocol)

  • Part of the TCP/IP suite. Moves email across networks with store and forward.
  • Works with the mail transfer agent (MTA) to get mail to the right server and into the right inbox.
  • Port 25.

9. POP (Post Office Protocol)

  • Retrieves messages from a mail server.
  • Current version: POP3.
  • Port 110, over TCP.
  • Two modes: delete (messages are removed from the server once downloaded) and keep (messages stay on the server for later).

10. IMAP (Internet Message Access Protocol)

  • Retrieves and synchronises messages with a mail server.
  • Current version: IMAP4.
  • Port 143, over TCP.
  • Works in synchronisation mode: mail is read and managed on the server itself.
  • Supports server-side folders: create, delete and organise folders on the server.
  • Multi-device sync: a change on one device shows up on all of them.
  • Offline access to messages already synchronised.

11. MIME (Multipurpose Internet Mail Extensions)

  • Extends SMTP to carry non-ASCII data: audio, video, programs and other files. It works alongside the other mail protocols to extend what they can carry.

12. DNS and 13. DHCP

Both get their own sections next.

DNS (Domain Name System)

  • DNS is a set of distributed databases, run by a hierarchy of name servers, that translate domain names into IP addresses. The internet depends on it.
  • Why DNS? Hosts are identified by IP addresses, which people find hard to remember, and a site’s IP address can change. DNS maps a stable name to the current address.
  • Why DNS uses UDP rather than TCP: DNS answers ordinary queries over UDP port 53 because it is faster, suits small queries, scales, and has no connection to manage. UDP is unreliable, but the application adds reliability itself: it waits for a response and resends the query after a timeout. (DNS does use TCP port 53 for responses too large for a UDP packet and for zone transfers.)

Types of domain

flowchart TD
    Root((Root)) --> Gen[Generic domains]
    Root --> Cty[Country domains]
    Root --> Inv[Inverse domain]
    Gen --> com[.com]
    Gen --> edu[.edu]
    Gen --> org[.org · .net · .mil …]
    Cty --> inn[.in]
    Cty --> us[.us · .uk · .au …]
    Inv --> arpa[.arpa]
    classDef gateway fill:#EDE9FE,stroke:#7C3AED,color:#4C1D95,stroke-width:2px
    classDef service fill:#D1FAE5,stroke:#059669,color:#065F46,stroke-width:2px
    classDef flow    fill:#F1F5F9,stroke:#475569,color:#0F172A,stroke-width:2px
    class Root gateway
    class Gen,Cty,Inv service
    class com,edu,org,inn,us,arpa flow
  1. Generic domains: .com (commercial), .edu (educational), .mil (military), .org (non-profit), .net (similar to commercial).
  2. Country domains: .in (India), .us, .uk and so on.
  3. Inverse domain: maps an address back to a name. When a server gets a request from a client, it can check whether the client is authorised by asking DNS to map the client’s address to a name.

Components of DNS

  • DNS record: holds a domain name, its IP address, validity, time to live, and everything else about that name. Records are stored in a tree.
  • Domain namespace: the set of possible names, flat or hierarchical. The naming system keeps a set of bindings from names to values, and a resolution mechanism returns the value for a name. The tree can have 128 levels, from level 0 (the root) to level 127.
  • Name server: implements the resolution mechanism; it is the internet’s name service. Its database of names and addresses is distributed across many servers, following the name hierarchy and divided into zones.

Each node in the tree has a label, and a node’s domain name is its labels read upward to the root:

flowchart LR
    R(("root<br/>(empty label)")) --> E["edu<br/>edu."] --> F["fhda<br/>fhda.edu."] --> A["atc<br/>atc.fhda.edu."] --> C["challenger<br/>challenger.atc.fhda.edu."]
    classDef gateway fill:#EDE9FE,stroke:#7C3AED,color:#4C1D95,stroke-width:2px
    classDef flow    fill:#F1F5F9,stroke:#475569,color:#0F172A,stroke-width:2px
    class R gateway
    class E,F,A,C flow
  • Fully qualified domain name (FQDN): a complete, unambiguous name, with every label up to the root:
    • www.example.com
    • mail.google.com
    • ftp.microsoft.com
  • Partially qualified domain name (PQDN): a name missing some labels, used inside local networks and internal systems:
    • www (no domain or top-level domain)
    • mailserver (no domain or top-level domain)
    • dbserver.internal (no higher-level domains)

DNS architecture

  • A domain is a subtree of the namespace: a named area of control. A zone is the part of a domain that one server is responsible for, with its own zone file. If a domain has no subdomains delegated elsewhere, the domain and the zone are the same thing.

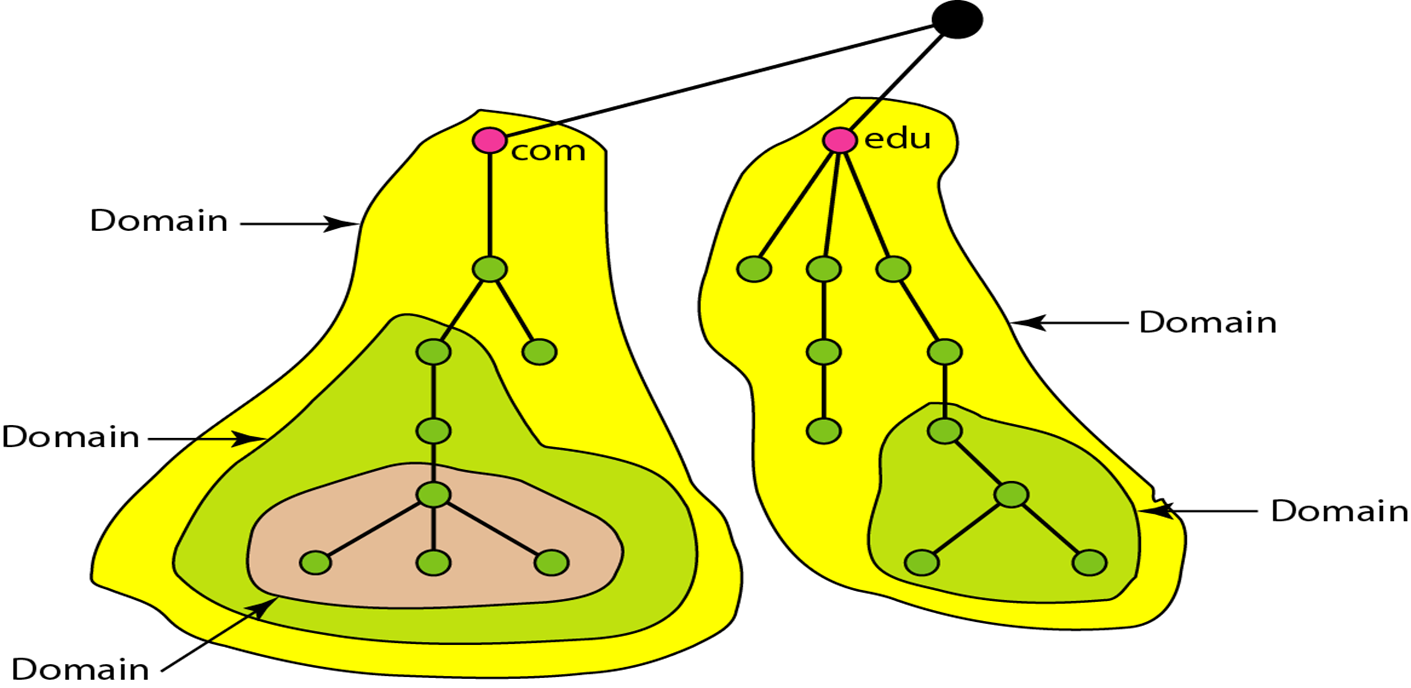

The DNS tree from the root with com and edu subtrees; nested shaded regions under com and under edu are each labelled Domain, showing that every subtree is a domain
Every subtree is a domain, and domains nest.

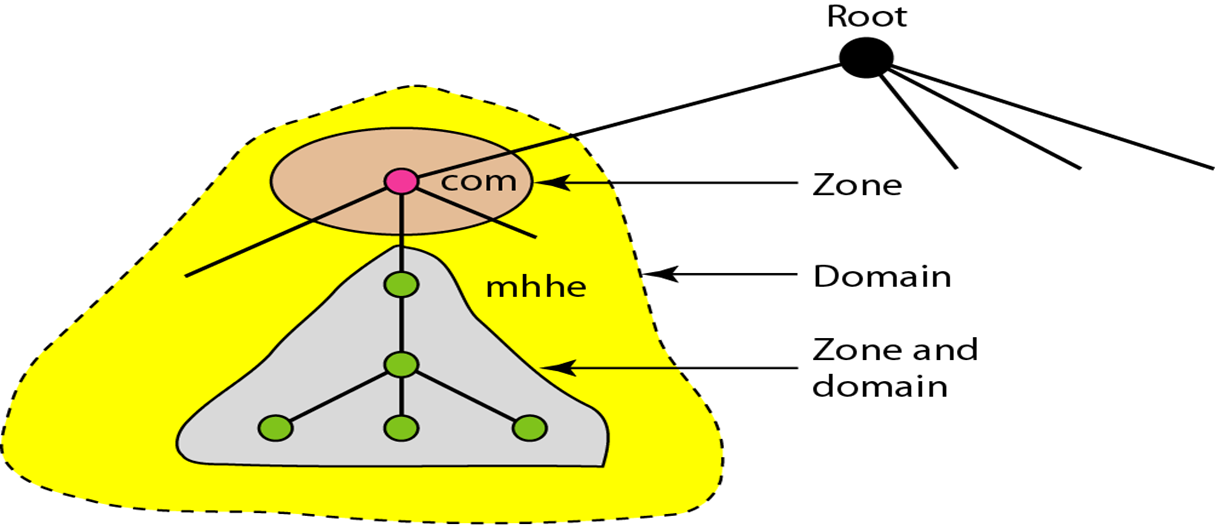

The DNS tree with the com node inside an ellipse labelled Zone, a dashed region labelled Domain covering com's whole subtree, and the mhhe subtree labelled Zone and domain
The com server's zone is only part of the com domain; for mhhe, which delegates nothing further, zone and domain coincide.

For example, the servers for edu, berkeley.edu and cs.berkeley.edu can each hold their own zone:

flowchart TD
    subgraph Z1[edu zone]
        edu[edu] --> stanford[stanford]
        edu --> emu[emu]
    end
    subgraph Z2[berkeley.edu zone]
        berkeley[berkeley] --> co[co]
        berkeley --> me[me]
    end
    subgraph Z3[cs.berkeley.edu zone]
        cs[cs]
    end
    edu --> berkeley
    berkeley --> cs
    classDef gateway fill:#EDE9FE,stroke:#7C3AED,color:#4C1D95,stroke-width:2px
    class edu,stanford,emu,berkeley,co,me,cs gateway

The hierarchy of name servers:

  1. Root servers: the top of the hierarchy, covering the whole tree. They hold no information about domains themselves but delegate authority to other servers. There are 13 root server identities (each run as many machines around the world).
  2. Primary server: an authoritative server that stores the zone file for its zone and has the authority to create, maintain and update it. It loads the zone from a file on disk.
  3. Secondary server: an authoritative server that copies the whole zone from another server, primary or secondary. It cannot create or change the zone file; it loads everything from the primary.

A typical external DNS request, as it flows through that hierarchy:

sequenceDiagram
    participant U as User
    participant Rec as Recursive DNS server
    participant Root as Root server
    participant TLD as TLD server (.com)
    participant Auth as Authoritative server
    U->>Rec: DNS query
    Note over Rec: not in cache
    Rec->>Root: 1st request
    Root-->>Rec: ask the .com TLD server
    Rec->>TLD: 2nd request
    TLD-->>Rec: ask the domain's authoritative server
    Rec->>Auth: 3rd request
    Auth-->>Rec: the IP address
    Note over Rec: adds the response to its cache
    Rec-->>U: DNS response

Why distribute DNS? Load balancing across the enormous volume of global queries, faster answers from servers close to the user, redundancy so there is no single point of failure, and simpler maintenance and updates.

Address resolution in DNS

  • The hierarchy: root servers, contacted by any server that cannot resolve a name itself; top-level domain (TLD) servers for com, org, edu and so on; and authoritative servers run by organisations or providers, which hold the definitive name-to-address mappings.
  • The resolver:
    • DNS is a client-server application. A host that needs a mapping calls a DNS client, the resolver, which sends the request to the nearest DNS server.
    • If that server has the answer, it returns it. If not, it either refers the resolver to another server or asks other servers itself.
    • The resolver checks whether the response is a real answer or an error, and hands the result to the process that asked.
  • Mapping names to addresses: the server looks the name up in the generic or country part of the tree. For a generic name like chal.atc.fhda.edu, the resolver asks its local DNS server, which refers or asks onward if it cannot answer. A country name like ch.fhda.cu.ca.us goes the same way.
  • Mapping addresses to names: a client sends an IP address and asks for the name, a PTR query. DNS uses the inverse domain: the address is written backwards and in-addr.arpa is appended. To look up 132.34.45.121, the resolver asks for 121.45.34.132.in-addr.arpa.

Recursive and iterative resolution

  1. Recursive resolution: the client asks its local server for the mapping or an error, and each server that cannot answer forwards the query on its own behalf: the local server asks the root, the root asks the TLD server, and so on. The answer travels back along the same chain to the local server and then to the client.

    sequenceDiagram
    participant C as Client
    participant L as fhda.edu (local)
    participant E as edu server
    participant R as Root server
    participant Com as com server
    participant M as mcgraw.com
    C->>L: 1
    L->>E: 2
    E->>R: 3
    R->>Com: 4
    Com->>M: 5
    M-->>Com: 6
    Com-->>R: 7
    R-->>E: 8
    E-->>L: 9
    L-->>C: 10

  2. Iterative resolution: each server that cannot answer returns the address of the next server to ask, and the client does the asking. The query goes to the local server, then the root, then the TLD server, and so on, until one of them returns the address.

    sequenceDiagram
    participant C as Client
    participant L as fhda.edu (local)
    participant E as edu server
    participant R as Root server
    participant Com as com server
    participant M as mcgraw.com
    C->>L: 1
    L-->>C: 2 (referral)
    C->>E: 3
    E-->>C: 4 (referral)
    C->>R: 5
    R-->>C: 6 (referral)
    C->>Com: 7
    Com-->>C: 8 (referral)
    C->>M: 9
    M-->>C: 10 (answer)
Property Iterative Recursive
Server’s response Best match or a referral The mapping, or an error
Who forwards the query Each server returns the next server’s address Each server forwards the query itself
Load on the queried servers Lower: each only answers or refers Higher on the servers that do the chasing
Response time for the client Longer, since the client makes every query Shorter from the client’s view
Caching Less useful, since servers return referrals More useful, since servers see the final answers
Security Lower: many servers could tamper with the answer Higher: the client trusts only its local server

(In the notes the load row had the two swapped: in recursive resolution it is the servers doing the work, which is why root and TLD servers only answer iteratively in practice.)

Caching

  • In both iterative and recursive resolution, servers cache the mappings they receive, so the next lookup is faster. A cached answer is marked unauthoritative.
  • Each cached mapping has a TTL. Servers drop mappings whose TTL has expired, so clients are not given stale answers: caching speeds things up without serving outdated data.

DNS delegation

Delegation happens when the authoritative server for a domain, asked about a subdomain, answers with name server (NS) records pointing to other servers: it hands authority for the subdomain over to them.

Types of DNS attack

  1. Denial of service (DoS): the attacker makes a server unavailable by overwhelming it or exhausting its resources.
  2. Distributed denial of service (DDoS): the attacker uses many machines to flood the victim with traffic.

  3. DNS spoofing: the victim gets a wrong IP address for the site it asked for. Attackers exploit flaws in DNS to insert a fake entry and redirect users to a malicious site.

    flowchart LR
    C([Client]) -->|1. request for the real site| D[(DNS server)]
    Att[Attacker] -->|2. injects a fake DNS entry| D
    D -->|3. resolves to the fake site| F[Fake website]
    D -.-x|never reached| Real[Real website]
    classDef actor fill:#DBEAFE,stroke:#2563EB,color:#1E3A8A,stroke-width:2px
    classDef store fill:#CFFAFE,stroke:#0891B2,color:#164E63,stroke-width:2px
    classDef error fill:#FEE2E2,stroke:#DC2626,color:#7F1D1D,stroke-width:2px
    classDef ok    fill:#DCFCE7,stroke:#16A34A,color:#14532D,stroke-width:2px
    class C actor
    class D store
    class Att,F error
    class Real ok

    Defences: DNSSEC (DNS Security Extensions) digitally signs DNS data; source authentication with IPsec or TLS; response rate limiting against amplification attacks; DNS filtering to block known malicious domains and addresses; monitoring and analysis to spot anomalies; and keeping DNS software patched.

  4. Fast flux: constantly changing the DNS records behind a name to hide where the attacker really is.
  5. Reflected attacks: queries are sent with the victim’s address spoofed as the source, so the answers go to the victim.
  6. Reflective amplification DoS: the same, with queries chosen so the answers are much larger than the questions, amplifying the flood.

General measures: digital signatures and certificates to authenticate sessions and protect data, running current software such as recent BIND versions, applying patches, replicating data across servers so nothing is lost, blocking redundant queries to hinder spoofing, and limiting the number of queries a client can make.

DHCP (Dynamic Host Configuration Protocol)

  • DHCP is an application-layer protocol that hands out IP addresses to clients on a network, using a client-server model. Along with the address it provides settings such as:
Subnet mask              (option 1,  e.g. 255.255.255.0)
Router address           (option 3,  e.g. 192.168.1.1)
DNS server address       (option 6,  e.g. 8.8.8.8)
Vendor-specific info     (option 43, e.g. 'unifi' = 192.168.1.9, where unifi is a controller)
  • Why use DHCP? It automates and centralises IP address management: it offers leases to DHCP-enabled clients and keeps every host’s address unique.

Components

  1. DHCP server: holds the IP addresses and configuration.
  2. DHCP client: a device that receives configuration from the server.
  3. DHCP relay: passes messages between clients and a server on another network.
  4. IP address pool: the addresses the server can hand out.
  5. Subnets: smaller portions of the network, used to partition it.
  6. Lease: how long the configuration a client receives stays valid.
  7. DNS servers: the server can tell clients which DNS servers to use.
  8. Default gateway: where to send packets bound outside the local network.
  9. Options: further settings, such as the subnet mask, domain name and time server.
  10. Renewal: a client asks to extend its lease before it expires.
  11. Failover: two servers configured to back each other up.
  12. Dynamic updates: the server can update DNS records with clients’ addresses.
  13. Audit logging: the server logs transactions for monitoring and management.

How DHCP works: DORA

A client gets its address through four messages, abbreviated DORA:

Message Sent by Purpose
Discover Client Finds a DHCP server
Offer Server Offers a unique IP address and the other settings the client needs
Request Client Asks for the settings in the offer
Acknowledgement Server Assigns the IP address, mask, default router and DNS server
sequenceDiagram
    participant C as Client (no IP yet)
    participant S as DHCP server
    C->>S: DISCOVER (src 0.0.0.0 → dst 255.255.255.255, broadcast)
    S->>C: OFFER (e.g. 192.168.1.51, lease 72 h)
    C->>S: REQUEST (I accept 192.168.1.51)
    S->>C: ACK (address, mask, router, DNS: lease starts)
  • DHCP runs over UDP on IP, so its messages are IP packets.
  • A host with no address yet uses 0.0.0.0 as its source address.
  • It sends to the local broadcast address 255.255.255.255.
  • If the DHCP server is not on the local LAN, the router is configured with an IP helper address: the DHCP server’s address.
  • The router rewrites broadcast DHCP packets to the helper address, so the DORA exchange can reach a server outside the LAN.
flowchart LR
    PC0[PC0] --- SW[Switch]
    PC1[PC1] --- SW
    SW --- R1["R1 · Gi0/1<br/>ip helper-address 14.0.10.1"]
    R1 ---|Gi0/2| R2[R2]
    R2 --- DS[("DHCP server<br/>14.0.10.1")]
    PC1 -.->|"src 0.0.0.0 · dst 255.255.255.255"| R1
    R1 -.->|"src Gi0/2 address · dst 14.0.10.1"| DS
    classDef gateway fill:#EDE9FE,stroke:#7C3AED,color:#4C1D95,stroke-width:2px
    classDef service fill:#D1FAE5,stroke:#059669,color:#065F46,stroke-width:2px
    classDef store   fill:#CFFAFE,stroke:#0891B2,color:#164E63,stroke-width:2px
    classDef flow    fill:#F1F5F9,stroke:#475569,color:#0F172A,stroke-width:2px
    class R1,R2 gateway
    class SW service
    class DS store
    class PC0,PC1 flow
  1. PC1 broadcasts a Discover, but there is no DHCP server on its LAN.
  2. R1 receives the packet and, because of its IP helper address, rewrites the destination to the DHCP server, 14.0.10.1, and the source to its own outgoing interface, Gi0/2.
  3. The DHCP server receives the Discover and responds.
  4. It sends the Offer with its own address as source and R1’s Gi0/2 address as destination: it reverses the addresses of the packet it received.
  5. R1 receives the Offer and forwards it to PC1.
  6. The Request and Acknowledge are exchanged the same way.

The eight DHCP messages

  1. DHCPDISCOVER: the first message, broadcast by the client to find DHCP servers (342 or 576 bytes). Example: source MAC 08002B2EAF2A, destination MAC FFFFFFFFFFFF, source IP 0.0.0.0, destination IP 255.255.255.255.
  2. DHCPOFFER: the server’s broadcast reply (342 bytes), offering an unleased IP address and configuration, including its server ID. Example: source IP 172.16.32.12, destination IP 255.255.255.255, source MAC 00AA00123456, destination MAC FFFFFFFFFFFF, offering 192.16.32.51 with a 72-hour lease, for client ID 08002B2EAF2A.
  3. DHCPREQUEST: on receiving an offer, the client first sends a gratuitous ARP for the offered address. If nobody answers, the address is free, and the client broadcasts a request accepting it, with its client ID (source IP 0.0.0.0, destination IP 255.255.255.255, source MAC 08002B2EAF2A, destination MAC FFFFFFFFFFFF).
  4. DHCPACK: the server binds the address and lease to that client ID and grants it, recording the client in its lease table. Example: destination MAC FFFFFFFFFFFF, destination IP 255.255.255.255, source IP 172.16.32.12, source MAC 00AA00123456.
  5. DHCPNAK: the server refuses a request for an invalid address, for example when it has no unused addresses left and the pool is empty.
  6. DHCPDECLINE: the client rejects the configuration because the parameters are invalid, or because its gratuitous ARP got an answer, meaning the address is already in use.
  7. DHCPRELEASE: the client gives its address back and cancels the rest of its lease.
  8. DHCPINFORM: a client that already has an address, configured by hand, asks only for other local settings such as the domain name. The server answers with a unicast ACK carrying the settings, without assigning an address.

Any of these messages can also be unicast, by a DHCP relay agent, when the server is on a different network.

The client’s side of the protocol as a state machine:

stateDiagram-v2
    [*] --> INIT: boot
    INIT --> SELECTING: send DHCPDISCOVER
    SELECTING --> SELECTING: DHCPOFFER
    SELECTING --> REQUESTING: select offer, send DHCPREQUEST
    REQUESTING --> BOUND: DHCPACK
    BOUND --> RENEWING: 50% of lease expired, send DHCPREQUEST
    RENEWING --> BOUND: DHCPACK
    RENEWING --> REBINDING: 87.5% of lease expired, send DHCPREQUEST
    REBINDING --> BOUND: DHCPACK
    REBINDING --> INIT: lease expired or DHCPNACK
    BOUND --> INIT: lease cancelled, send DHCPRELEASE

Advantages: central management of IP addresses, automatic TCP/IP configuration, easy to add new clients, addresses are reused, address changes are handled efficiently, the address space is easy to reconfigure, and new users are easy to handle.

Disadvantages: possible IP conflicts, the risk of clients accepting a rogue DHCP server, no network access when the DHCP server is down, and a machine’s name is not updated automatically when it gets a new address.

RPC (Remote Procedure Call)

  • An inter-process communication technique for building distributed client-server applications.
  • The client calls the server as if it were calling an ordinary local procedure.
  • It works like a function call: the arguments go to the remote procedure and the caller waits for the result.
sequenceDiagram
    participant C as Caller (client process)
    participant S as Callee (server process)
    Note over S: waiting for a request
    C->>S: request message (the procedure's parameters)
    Note over C: waiting for the reply
    Note over S: receive request, execute the procedure
    S-->>C: reply message (the result)
    Note over C: resume execution
    Note over S: wait for the next request
  • Features: a well-defined interface; the procedure runs in the server process; the processes can be on the same machine or different ones; parameters are passed by value.
  • Advantages: makes client-server communication easy, supports process- and thread-oriented models, hides the message passing from the programmer, works in distributed environments, and needs little rewriting of existing code.
  • Drawbacks: calls take longer than local ones, more can fail because several machines and processes are involved, implementations are not standardised, it is inflexible about hardware architecture, and each call costs more.
  • Types: callback RPC (enables a peer-to-peer style), broadcast RPC (the request is processed by several servers), and batch-mode RPC (requests are queued and sent in batches).
  • Architecture: the client makes requests, the server answers them, the client stub packages the call, the runtime library manages the RPC, and the server stub holds the server’s procedures and unpacks the call.

How a packet travels

  1. Sender: the packet starts at a device on a network, such as a computer or a server.
  2. Encapsulation: the sender wraps the data into packets, each with a header (control information such as source and destination addresses) and a payload (the data).
  3. Sender to switch: if sender and receiver are on the same LAN, the packet goes from the sender to the local switch, a data-link (layer 2) device.
  4. Switch examines: the switch reads the destination MAC address to find the right port.
  5. Switch forwards: it sends the frame out of the port the receiver is on, so the two communicate directly within the LAN.
  6. Switch to router: if the receiver is on a different network or subnet, the packet must go through a router. The switch delivers it to the router on the sender’s LAN.
  7. Router examines: the router reads the destination IP address to work out how to reach the receiver’s network.
  8. Routing decision: using its routing table, routing protocols and other information, it picks the next hop.
  9. Router to router: the packet passes from router to router along the path; the routers keep their tables current with protocols such as RIP or OSPF.
  10. Router to switch: the packet reaches the router on the receiver’s LAN, which checks the destination IP once more to pick the outgoing interface.
  11. Switch to receiver: that router hands the packet to the receiver’s switch, which reads the destination MAC address and forwards it to the receiver’s port.
  12. Receiver: the packet arrives, and the device unwraps it to get the original data.
flowchart LR
    S([Sender]) --> SW1[Switch<br/>reads MAC]
    SW1 -->|same LAN| RX([Receiver])
    SW1 -->|other network| R1[Router<br/>reads IP]
    R1 --> R2[Router] --> R3[Router on the<br/>receiver's LAN]
    R3 --> SW2[Switch<br/>reads MAC] --> RX
    classDef actor   fill:#DBEAFE,stroke:#2563EB,color:#1E3A8A,stroke-width:2px
    classDef service fill:#D1FAE5,stroke:#059669,color:#065F46,stroke-width:2px
    classDef gateway fill:#EDE9FE,stroke:#7C3AED,color:#4C1D95,stroke-width:2px
    class S,RX actor
    class SW1,SW2 service
    class R1,R2,R3 gateway

(One detail the steps gloss over: between routers the IP addresses stay the same end to end, but each hop builds a new frame with new MAC addresses, the ones for that hop only. That is what ARP, from Part Two, is for.)

Short answers

What is the difference between the internet and the web?

The internet is a global network of networks. The web (World Wide Web) is a collection of information reached over the internet. The internet is the infrastructure and the web is software running on it: the web uses HTTP (port 80, or 443 for HTTPS) to carry documents in HTML, CSS and JavaScript, while the internet carries many other protocols on many other ports.

What are a client, a server, a host and a peer?

  • A client is hardware or software that uses a service a server provides, usually (not always) on a different machine.
  • A server is a computer that runs services for others: file storage, databases, media sharing, printing, serving websites.
  • A host is any computer that provides or uses data or services over a network and has an IP address, unlike devices such as modems, hubs and switches.
  • A peer is a computer that both requests and provides data or services, acting as client and server with no hierarchy, so peers share resources with each other.

What is network bandwidth?

The maximum rate at which a link can carry data, which sets the transfer rate and how many devices it can support. It is measured in bits per second (bps) and its multiples. On a symmetrical connection upload and download are the same; on an asymmetrical one, upload is usually smaller.

What is jitter?

Variation in the delay of packets over a connection, caused by congestion or route changes. It degrades video and audio, especially in conference calls and VoIP.

What is localhost?

  • 127.0.0.1 (http://localhost) is your own computer, reached through the loopback interface without touching the network. It is used to run a local server for testing web applications, to block malicious sites through the hosts file, and to simulate connections without network errors.
  • Your machine also has a separate address on your local network, such as 192.168.0.x, usually handed out by your router’s DHCP server (the notes said by the ISP; the ISP assigns the router’s public address).
  • Tools such as XAMPP are commonly used to run a test server on localhost.

What is noise?

  • Any unwanted signal or disturbance that interferes with a transmission, weakening it and making communication less efficient.
  • Thermal noise comes from temperature and is present in all media and equipment. Intermodulation (IM) noise comes from spurious frequencies produced by non-linear devices or media.
  • Crosstalk is electromagnetic interference between circuits or cable pairs, so signals overlap.
  • Impulse noise is a sudden, brief disturbance.

What are distortion and attenuation?

  • Distortion is a change to a signal in transit that makes it arrive unclear. It is common in sound, video and display signals, and in data cables such as network cables.
  • Attenuation is loss of signal strength along a cable or connection, which leads to distortion. Better cables and amplifiers or repeaters counter it.

What is an API gateway?

  • A single entry point for clients that routes requests to the right services (and API versions), keeps communication with microservices secure and scalable, and can combine results from several services into one response.
  • It works for monolithic and microservice applications alike. Its basic jobs:
    • Authenticating callers (AuthN)
    • Checking they are allowed to make the request (AuthZ)
    • Routing requests to the right backends
    • Rate-limiting to protect your systems from overload
    • Rate-limiting to blunt DDoS attacks
    • Terminating SSL/TLS to take that work off the backends
    • Handling errors and exceptions

What is SSL/TLS?

SSL (Secure Sockets Layer) and its successor TLS (Transport Layer Security) set up authenticated, encrypted links between computers on a network. SSL was deprecated when TLS 1.0 came out in 1999, but people still say “SSL” or “SSL/TLS” for both. The current version is TLS 1.3, defined in RFC 8446 (August 2018).

What is a reverse proxy?

  • A proxy server (forward proxy) sits between client machines and web servers, taking the clients’ requests and forwarding them on their behalf. Used to get around restrictions, control what content can be reached, or add anonymity.
flowchart LR
    U1([User device]) --> FP[Forward proxy]
    U2([User device]) --> FP
    U3([User device]) --> FP
    FP --> Net((Internet))
    Net --> O1[(Origin server)]
    Net --> O2[(Origin server)]
    classDef actor   fill:#DBEAFE,stroke:#2563EB,color:#1E3A8A,stroke-width:2px
    classDef gateway fill:#EDE9FE,stroke:#7C3AED,color:#4C1D95,stroke-width:2px
    classDef store   fill:#CFFAFE,stroke:#0891B2,color:#164E63,stroke-width:2px
    classDef flow    fill:#F1F5F9,stroke:#475569,color:#0F172A,stroke-width:2px
    class U1,U2,U3 actor
    class FP gateway
    class Net flow
    class O1,O2 store
  • A reverse proxy sits in front of the origin servers instead: it takes clients’ requests from the internet and forwards them to the servers. It gives load balancing, protection from attacks, global server load balancing (GSLB), caching and SSL termination.
flowchart LR
    U1([User device]) --> Net((Internet))
    U2([User device]) --> Net
    U3([User device]) --> Net
    Net --> RP[Reverse proxy]
    RP --> O1[(Origin server)]
    RP --> O2[(Origin server)]
    classDef actor   fill:#DBEAFE,stroke:#2563EB,color:#1E3A8A,stroke-width:2px
    classDef gateway fill:#EDE9FE,stroke:#7C3AED,color:#4C1D95,stroke-width:2px
    classDef store   fill:#CFFAFE,stroke:#0891B2,color:#164E63,stroke-width:2px
    classDef flow    fill:#F1F5F9,stroke:#475569,color:#0F172A,stroke-width:2px
    class U1,U2,U3 actor
    class RP gateway
    class Net flow
    class O1,O2 store

The difference is which side the proxy works for: a forward proxy acts for the clients, a reverse proxy for the servers.

What is load balancing?

Spreading network traffic across several servers, for high availability, scalability and reliability, with less downtime, more redundancy, more flexibility and better efficiency.

What is a VIP?

A virtual IP is an address not tied to one physical device or interface, which several devices can share. It provides high availability, load balancing or failover. For example, a web server cluster can publish one VIP for clients while requests are spread across the servers behind it. If a server fails, another takes over the VIP and keeps serving.

What is caching, and how is a website cached?

Caching stores copies of files or data in temporary storage, a cache, so they can be fetched faster. A website is cached by browsers, DNS servers and CDNs, which keep a copy of its content locally or nearby, so the next request is served from the cache instead of the origin server.

REST API vs HTTP API

In these notes, “HTTP API” means an RPC-style API that happens to run over HTTP, as opposed to one designed around REST’s constraints. REST itself is not tied to HTTP, and an HTTP API can use more than GET and POST; the table reflects the typical contrast.

REST API HTTP API
An architectural style for distributed hypermedia systems: Representational State Transfer An API that exposes operations over the HTTP protocol
Not a standard or specification, but a set of principles and constraints Follows HTTP’s defined rules and methods
Can use any protocol with a uniform interface, such as HTTP Uses only HTTP
Requires stateless operations and uniquely identified resources May be stateful, keeping client state in cookies and sessions
Supports multiple formats: XML, JSON, HTML Usually one format, JSON or XML
Uses HTTP verbs (GET, POST, PUT, DELETE…) on resources Often uses just GET and POST, naming the operation in the URL
Scales well thanks to statelessness and resource identification Session state can make it harder to scale
E-commerce: GET /products for product info, POST /orders to place an order Email service: POST /send-email with parameters

Performance vs scalability

Performance Scalability
Measured by response time, throughput, availability, or requests over time The ability to get past performance limits by adding resources
Affected by system load, resource use and application state Affected by application topology, synchronisation and consistency
Improved by processing requests and using resources more efficiently Improved by scaling up or scaling out

Latency vs throughput

Latency Throughput
The time for a packet to cross the network The amount of data sent and received per unit of time
Measured in milliseconds (ms) Measured in bits per second (bps)
Affected by distance, number of routers and network design Affected by bandwidth, hardware performance and congestion
Says how fast packets arrive Says how many packets get through in a period
High latency makes services slow and choppy Low throughput means poor quality and lost packets

1G vs 2G vs 3G vs 4G vs 5G

Generation Key features
1G Analogue, with poor battery life and voice quality. Up to 2.4 kbps.
2G Digital, with CDMA and GSM. Introduced SMS and international roaming. Up to 50 kbps (GPRS) or 1 Mbps (EDGE).
3G UMTS core network. Brought web browsing, email and multimedia. At least 200 kbps; up to 2 Mbps stationary, 384 kbps on the move.
4G A big jump in speed. IP telephony, mobile web, HD mobile TV. Up to 100 Mbps in motion and 1 Gbps stationary.
5G Faster (up to 20 Gbps), lower latency, more capacity, massive IoT and AR support, with network slicing and mMTC (massive machine-type communication).

How does a VPN work?

A VPN builds a secure tunnel from your device to a VPN server. Your traffic is encrypted inside the tunnel and leaves from the server, which hides your IP address and protects what you do from your ISP and other third parties on the way.

How does Bluetooth work?

  • It uses radio waves to connect devices.
  • Devices form ad hoc networks (temporary networks with no central infrastructure) called piconets, with one master and up to seven slaves.
  • The master sets the timing and frequency hopping, and can swap roles with a slave.
  • Several piconets can be linked into a scatternet.
  • It runs in the 2.4 GHz ISM band and uses spread-spectrum frequency hopping to avoid interference and add security.
  • Data rates and range depend on the device class and Bluetooth version.

How does a hotspot work?

  • A hotspot gives wireless internet access to devices in range.
  • It can be a device (a phone, router or dongle) sharing its cellular data with others.
  • It can be a place (a café, hotel or park) offering public Wi-Fi.
  • It lets you get online without your own data plan or a wired connection.
  • It may be limited in speed, bandwidth, security and availability.

How does ATM work?

Asynchronous Transfer Mode (ATM) is a cell relay technology that carries many kinds of traffic, data, video and voice, in small fixed-size packets called cells (53 bytes). It sets up end-to-end connections with virtual circuits and cell switching, and gives each type of traffic its own quality of service. The notes describe four layers:

  • The ATM adaptation layer shields higher-layer protocols from ATM’s details and cuts user data into cells.
  • The physical layer sends and receives bits on the medium and packs cells into frames.
  • The ATM layer transmits and switches cells, handles congestion control and cell headers, and shares virtual circuits over the physical link.
  • The WAN layer carries ATM service over long distances, routers and broadband networks.

ATM has been used for WANs, multimedia VPNs, frame relay backbones, residential broadband and carrier infrastructure.

Networking commands

1. ping

  • Tests whether a host is reachable by sending ICMP echo requests and waiting for replies, which helps pin down network problems.
  • Example: if an office’s internet connection is down, ping shows whether the problem is inside the office or in the provider’s network.
Option Description (Windows ping)
target The IP address or hostname to ping.
-a Resolve the target’s IP address to a hostname.
-t Ping until stopped with Ctrl-C.
-n count Number of echo requests to send, 1 to 4,294,967,295. Default 4.
-l size Size of the echo request in bytes, 32 to 65,527. Default 32.
-s count Report the Internet Timestamp of each hop for up to 4 hops.
-r count Record the route for up to 9 hops (use tracert to see them all).
-i TTL Set the time to live, up to 255.
-f Set Don’t Fragment, so routers cannot fragment the request. Used to troubleshoot path MTU (PMTU) problems.
-w timeout Time to wait for each reply, in milliseconds. Default 4,000 (4 seconds).
-p Ping a Hyper-V Network Virtualization provider address.
-S srcaddr Use this source address.

2. netstat

  • A command-line tool on Windows, Linux, UNIX and most other systems that shows statistics and details about current TCP/IP connections and network protocols.
Option Description
-a Show all connections and listening ports
-b Show the executable behind each connection or listening port
-e Show Ethernet statistics (combine with -s)
-n Show addresses and ports as numbers
-o Show the owning process ID of each connection
-r Show the routing table
-v With -b, show the sequence of components involved for each executable

3. ipconfig

  • Shows the device’s IP configuration: IP address, subnet mask and default gateway. ipconfig at a Windows prompt shows the basics for the current device; ipconfig /all shows everything. It also has options for DNS and DHCP problems, such as /flushdns, /release and /renew.

4. hostname

  • Computers need a unique name to find each other, the hostname: letters and digits, with some symbols allowed. In the Domain Name System (DNS) and on the internet, each label of a hostname is 1 to 63 characters, and the full name ends in a top-level domain (TLD).
Command (Linux) Description
hostname Print the computer’s name (with its domain, where configured)
hostname -s Print only the short computer name
hostname -d Print the DNS domain name
hostname -i Print the IP address for the hostname
hostname -a Print the computer’s aliases

5. tracert

  • A Windows command that traces the path a packet takes to a target and how many hops it needs, with details of each hop from source to destination. Available on all Windows versions (traceroute on Linux and macOS).
tracert [-d] [-h MaxHops] [-w TimeOut] target

Options:

  • target: the destination, an IP address or hostname.
  • -d: do not resolve IP addresses to hostnames, which is faster.
  • -h MaxHops: the most hops to try before giving up. Default 30.
  • -w TimeOut: how long to wait for each reply, in milliseconds.

6. nslookup

  • Queries DNS for information about a name, and shows which DNS server answered, including the default server’s name and IP address.
nslookup
nslookup [domain_name]

7. route

  • Shows and edits the IP routing table, which directs packets between subnets. route print prints the table; route add, route delete and route change modify it.

8. arp

  • ARP maps IP addresses to MAC addresses for local delivery. arp -a shows the ARP cache: IP addresses with their hardware (MAC) addresses, the interface, and the entry type (and on some systems flags and masks).

9. pathping

pathping combines ping and tracert. It traces the route, then gathers statistics over about 300 seconds (by default) and reports latency and packet loss at every hop in between, which tells you more than either tool alone.

pathping [-n] [-h MaxHops] [-g Hostlist] [-p Period] [-q NumQueries] [-w Timeout] [-i IPAddress] [-4] [-6] TargetName
  • -n: do not resolve router addresses to names.
  • -h MaxHops: the most hops to search. Default 30.
  • -w Timeout: how long to wait for each reply, in milliseconds.
  • -i IPAddress: use this source address.
  • TargetName: the destination, an IP address or hostname.

That completes the stack: frames in Part One, packets and segments in Part Two, and here the applications, the services that name and number everything, and the tools to check it all.

networking dns dhcp http series
